[python] [scikit-learn] calibrate probabilities for imbalanced classification model

fig1. title

imbalace dataset을 이용해서 modeling한 classification model에서 predict probabilities를 calibration 해주면 performance의 개선이 있을 수 있음

참고 : machinelearningmastery.com/probability-calibration-for-imbalanced-classification/

How to Calibrate Probabilities for Imbalanced Classification

fig2. calibrated model and uncalibrated model

imbalance classification model의 calibration curve를 그려보면 보통 파란색선과 같은 '┘'자 형태의 curve가 그려짐 대각선과 유사한 주황색선으로 calibrating을 해보자

---

#1. calibrating predict probability : plot only calibrated model

method에는 크게 두가지 'sigmoid', 'isotonic'이 있음

from xgboost import XGBClassifier
from sklearn.calibration import CalibratedClassifierCV
from sklearn.calibration import calibration_curve

#calibrated model

#model
model_c1 = XGBClassifier()

# fit a model
calibrated = CalibratedClassifierCV(model_c1, method='isotonic', cv=5)
calibrated.fit(X_train_features, y_train)

# predict probabilities
train_probs = calibrated.predict_proba(X_train_features)[:, 1]

# reliability diagram
fop, mpv = calibration_curve(y_train, train_probs, n_bins=10)

# plot perfectly calibrated
plt.plot([0, 1], [0, 1], linestyle='--')

# plot calibrated reliability
plt.plot(mpv, fop, marker='.')
plt.rcParams["figure.figsize"] = (6,6)
plt.show()

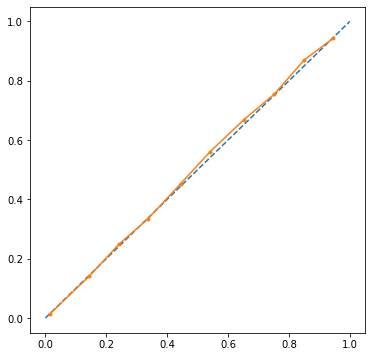

fig3. output of #1

#2. plot both calibrated model and uncalibrated model

#uncalibrated and calibrated plot

# predict uncalibrated probabilities
def uncalibrated(trainX, trainy):
	# fit a model
	model_c2 = XGBClassifier()
	model_c2.fit(trainX, trainy)
	# predict probabilities
	return model_c2.predict_proba(trainX)[:, 1]

# predict calibrated probabilities
def calibrated2(trainX, trainy):
	# define model
	model_c3 = XGBClassifier().fit(X_train_features, y_train)
	# define and fit calibration model
	calibrated_c3 = CalibratedClassifierCV(model_c3, method='isotonic', cv=5)
	calibrated_c3.fit(trainX, trainy)
	# predict probabilities
	return calibrated_c3.predict_proba(trainX)[:, 1]

# uncalibrated predictions
yhat_uncalibrated = uncalibrated(X_train_features, y_train)
# calibrated predictions
yhat_calibrated = calibrated2(X_train_features, y_train)
# reliability diagrams
fop_uncalibrated, mpv_uncalibrated = calibration_curve(y_train, yhat_uncalibrated, n_bins=10)
fop_calibrated, mpv_calibrated = calibration_curve(y_train, yhat_calibrated, n_bins=10)
# plot perfectly calibrated
plt.plot([0, 1], [0, 1], linestyle='--', color='black')
# plot model reliabilities
plt.plot(mpv_uncalibrated, fop_uncalibrated, marker='.')
plt.plot(mpv_calibrated, fop_calibrated, marker='.')
plt.rcParams["figure.figsize"] = (6,6)
plt.show()

fig2. calibrated model and uncalibrated model

참고 : machinelearningmastery.com/calibrated-classification-model-in-scikit-learn/

How and When to Use a Calibrated Classification Model with scikit-learn





#3. testset에서 calibration plot을 좀 더 자세히 그려보면

# Create classifiers
xgb = model
xgb_calibrated = calibrated

# #############################################################################
# Plot calibration plots

plt.figure(figsize=(10, 10))
ax1 = plt.subplot2grid((3, 1), (0, 0), rowspan=2)
ax2 = plt.subplot2grid((3, 1), (2, 0))

ax1.plot([0, 1], [0, 1], "k:", label="Perfectly calibrated")
for clf, name in [(xgb, 'XGBoost'),
                 (xgb_calibrated, 'calibrated XGBoost')]:
    clf.fit(X_test_features, y_test)
    if hasattr(clf, "predict_proba"):
        prob_pos = clf.predict_proba(X_test_features)[:, 1]
    else:  # use decision function
        prob_pos = clf.decision_function(X_test_features)
        prob_pos = \
            (prob_pos - prob_pos.min()) / (prob_pos.max() - prob_pos.min())
    fraction_of_positives, mean_predicted_value = \
        calibration_curve(y_test, prob_pos, n_bins=20)

    ax1.plot(mean_predicted_value, fraction_of_positives, "s-",
             label="%s" % (name, ))

    ax2.hist(prob_pos, range=(0, 1), bins=20, label=name,
             histtype="step", lw=2)

ax1.set_ylabel("Fraction of positives")
ax1.set_ylim([-0.05, 1.05])
ax1.legend(loc="lower right")
ax1.set_title('Calibration plots  (reliability curve)')

ax2.set_xlabel("Mean predicted value")
ax2.set_ylabel("Count")
ax2.legend(loc="upper center", ncol=2)

plt.tight_layout()
plt.show()

fig3. output of #3.

참고 : scikit-learn.org/stable/auto_examples/calibration/plot_calibration_curve.html#sphx-glr-auto-examples-calibration-plot-calibration-curve-py

Probability Calibration curves — scikit-learn 0.24.1 documentation

결과적으로 calibrated model의 성능이 미세하게 개선(특히 sensitivity가)되긴 함.
