[R][Survival Analysis] 심화: 생존 분석, 메타 분석, Kaplan-Meier curve, Cox-hazard, Hazard Ratio, Forestplot, Meta analysis

fig1. title

0. Previous posting

1. Sample data

2. Coxph model

3. Hazard Ratio Table

4. Meta analysis

5. Forestplot

6. Kaplan-Meier

---

0. Previous posting

- Survival 기본 학습

2023.04.10 - [R] - [R][Survival Analysis] 생존 분석, Kaplan-Meier curve, Cox-hazard, Hazard Ratio

[R][Survival Analysis] 생존 분석, Kaplan-Meier curve, Cox-hazard, Hazard Ratio

---

1. Sample data

- 샘플 데이터 만들기

library(dplyr)
library(data.table)

set.seed(230706)

# toy data

dt<-data.table(
  pid = sample(1:5000, 2000, replace = F),
  mace = sample(0:1, 2000, replace = T, prob = c(0.8,0.2)),
  mace_sub = sample(c("acute_mi","is","cr","death","cvd_death"), 2000, replace = T, prob = rep(0.2,5)),
  dm = sample(0:1, 2000, replace = T, prob = c(0.8,0.2)),
  dementia = sample(0:1, 2000, replace = T, prob = c(0.8,0.2)),
  myalgia = sample(0:1, 2000, replace = T, prob = c(0.8,0.2)),
  age = sample(0:99, 2000, replace = T),
  group = sample(c("Atorvastatin","Pravastatin"), 2000, replace = T, prob = c(0.8,0.2)),
  from = sample(c("0","1","2","3","4","5","6","7","8"), 2000, replace = T),
  index_year = sample(2006:2022, 2000, replace = T),
  event_tars_year = sample(0:15, 2000, replace = T)
)
glimpse(dt)

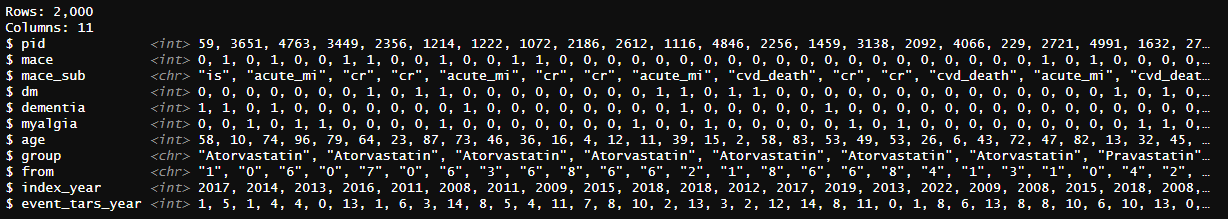

fig2. summary of sample dataset

---

2. Coxph model

- Coxph model function으로 만든 후 결과 보기

library(survival)

create_main_table <- function(data, outcome){
  hos_list<-unique(data$from)
  raw_table <- data.table()
  meta <- data.table()
  dt_now <- data.table()

  for (i in 1:length(hos_list)) {
    hos <- hos_list[i]
    dt_now <- data[from==hos]
    n_p <- nrow(dt_now[group=="Pravastatin"])
    n_p_e <- nrow(dt_now[group=="Pravastatin"&get(outcome)==1])
    ir_p <- round(((n_p_e/sum(dt_now[group=="Pravastatin"]$event_tars_year))*1000),2)
    n_a <- nrow(dt_now[group=="Atorvastatin"])
    n_a_e <- nrow(dt_now[group=="Atorvastatin"&get(outcome)==1])
    ir_a <- round(((n_a_e/sum(dt_now[group=="Atorvastatin"]$event_tars_year))*1000),2)

    # input variables by institution
    dt_now[,(outcome):=as.numeric(get(outcome))]


    fit_now <- tryCatch({
      coxph(Surv(event_tars_year, get(outcome)) ~ group, data = dt_now)
    }, error = function(e) {
      NA
    })

    if (outcome %in% c("myal","myal2")) {
      # cat("myal coxph")
      fit_now2 <- tryCatch({
      coxph(Surv(event_tars_year, get(outcome)) ~ group+index_year+alcohol+Antiplatelet_drug, data = dt_now) #+department_type
      }, error = function(e) {
      NA
      })
    }
    else {
      # cat("not myal coxph")
      fit_now2 <- tryCatch({
      coxph(Surv(event_tars_year, get(outcome)) ~ group + index_year, data = dt_now) #+department_type
      }, error = function(e) {
      NA
      })
    }

    HR <- tryCatch({
      paste0(round(exp(coef(fit_now)),2),"[",round(exp(confint(fit_now)[1]),2),";",round(exp(confint(fit_now)[2]),2),"]")
    }, error = function(e) {
      NA
    })

    p <- tryCatch({
      round(summary(fit_now)$coefficients[, "Pr(>|z|)"],3)
    }, error = function(e) {
      NA
    })

    HR2 <- tryCatch({
      paste0(round(exp(coef(fit_now2))[1],2),"[",round(exp(confint(fit_now2)[1,1]),2),";",round(exp(confint(fit_now2)[1,2]),2),"]")
    }, error = function(e) {
      NA
      # HR
    })

    p2 <- tryCatch({
      round(summary(fit_now2)$coefficients[, "Pr(>|z|)"][1],3)
    }, error = function(e) {
      NA
      # p
    })

    dt_return <- data.table(hos,n_p,n_p_e,ir_p,n_a,n_a_e,ir_a,HR,p,HR2,p2)
    raw_table <- rbind(raw_table, dt_return) %>% arrange(hos)

    ### for meta analysis
    HRlog <- tryCatch({
      coef(fit_now)
    }, error = function(e) {
      NA
    })

    SE <- tryCatch({
      sqrt(diag(fit_now$var))
    }, error = function(e) {
      NA
    })

    HRlog2 <- tryCatch({
      coef(fit_now2)[1]
    }, error = function(e) {
      # NA
      HRlog
    })

    SE2 <- tryCatch({
      sqrt(diag(fit_now2$var))[1]
    }, error = function(e) {
      # NA
      SE
    })

    meta_now <- data.table(hos, HRlog, SE, HRlog2, SE2)
    meta <- rbind(meta, meta_now, fill = T)
  }
  return(list(raw_table, meta))
}

# step3 result
(main1 <- create_main_table(dt,'mace')[[1]])
(meta1 <- create_main_table(dt,'mace')[[2]])

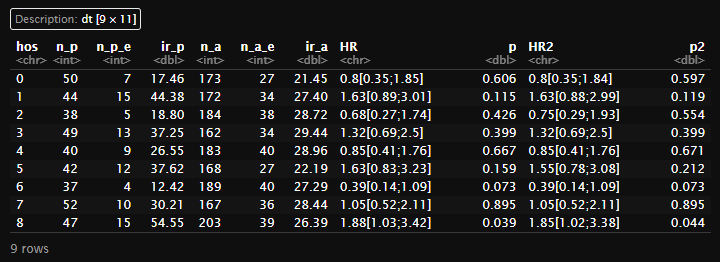

fig3. output1 by function included exp(HRlog)

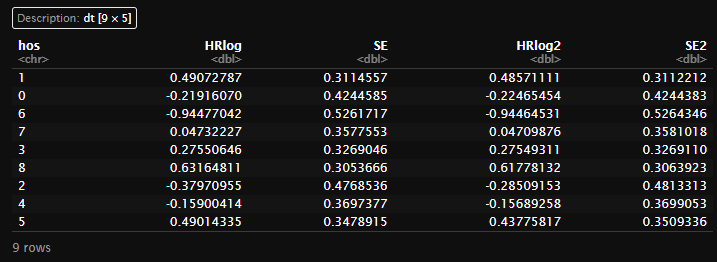

fig4. output2 by function included HRlog for meta anlaysis

---

3. Meta analysis

- Meta analysis, Both of Fixed Effect and Random Effect

- Summary about FE, RE

https://vitalflux.com/fixed-vs-random-vs-mixed-effects-models-examples/

Fixed vs Random vs Mixed Effects Models - Examples - Data Analytics

- Meta analysis function using metafor package

library(metafor)

# 1-2 meta analysis

table_meta <- function(dt){

  # dt[is.na(HRlog2), HRlog2:= HRlog]
  # dt[is.na(SE2), SE2:= SE]

  # 1. Fixed Effect
  res_FE <- rma(HRlog, sei=SE, data=dt, digits=2, method="FE")
  res_FE2 <- rma(HRlog2, sei=SE2, data=dt, digits=2, method="FE")
  # 2. Random Effect
  res_RE <- rma(HRlog, sei=SE, data=dt, digits=2, method="ML")
  res_RE2 <- rma(HRlog2, sei=SE2, data=dt, digits=2, method="ML")
  # 3. output
  meta_type <- c("FE","RE")
  HR_FE <- paste0(round(exp(res_FE$b),2)," [",round(exp(res_FE$ci.lb),2),";",round(exp(res_FE$ci.ub),2),"]")
  HR_FE2 <- paste0(round(exp(res_FE2$b),2)," [",round(exp(res_FE2$ci.lb),2),";",round(exp(res_FE2$ci.ub),2),"]")
  HR_RE <- paste0(round(exp(res_RE$b),2)," [",round(exp(res_RE$ci.lb),2),";",round(exp(res_RE$ci.ub),2),"]")
  HR_RE2 <- paste0(round(exp(res_RE2$b),2)," [",round(exp(res_RE2$ci.lb),2),";",round(exp(res_RE2$ci.ub),2),"]")
  cat(HR_FE, HR_FE2, HR_RE, HR_RE2)
  ## pval > estimated / Not Heterogeneity
  p_FE <- round(res_FE$pval,3)
  p_FE2 <- round(res_FE2$pval,3)
  p_RE <- round(res_RE$pval,3)
  p_RE2 <- round(res_RE2$pval,3)

  # 4. make dt
  dt_meta <- data.table(hos=meta_type, HR=c(HR_FE,HR_RE), p=c(p_FE,p_RE), HR2=c(HR_FE2,HR_RE2), p2=c(p_FE2,p_RE2))

  return(dt_meta)
}
(dt_meta<-table_meta(meta1))

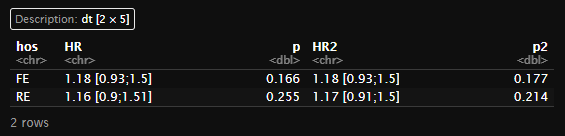

fig5. output by meta analysis function

---

4. Hazard Ratio Table, meta anlaysis form for paper

Seo, Won-Woo, et al. "Impact of pitavastatin on new-onset diabetes mellitus compared to atorvastatin and rosuvastatin: a distributed network analysis of 10 real-world databases."
Cardiovascular Diabetology 21.1 (2022): 1-14.

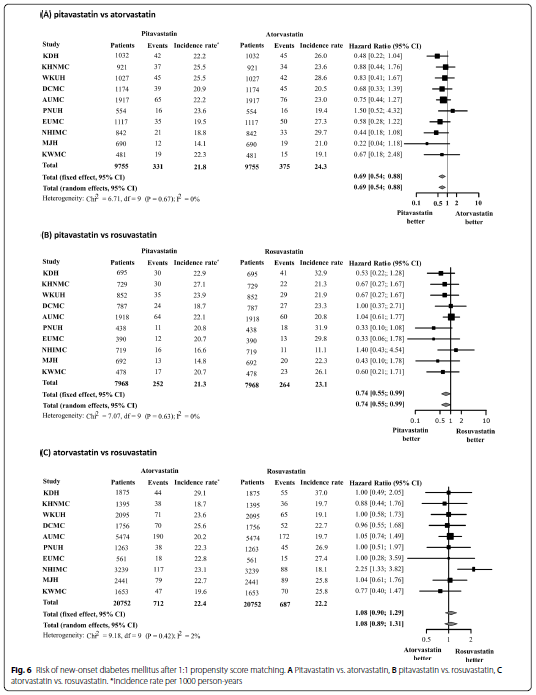

fig6. figure of paper "Impact of pitavastatin on new-onset diabetes mellitus compared to atorvastatin and rosuvastatin: a distributed network analysis of 10 real-world databases."

- Code to Mixing all outcomes

# 1-3 form_table

final_table <- function(main, meta, dt, outcome){
  # 1-1 + 1-2 rbind and arrange by form
  TOTAL <- data.table(
    hos = "TOTAL",
    n_p = nrow(dt[group=="Pravastatin"]),
    n_p_e = nrow(dt[group=="Pravastatin"&get(outcome)==1]),
    ir_p = round((nrow(dt[group=="Pravastatin"&get(outcome)==1])/sum(dt[group=="Pravastatin"]$event_tars_year))*1000,2),
    n_a = nrow(dt[group=="Atorvastatin"]),
    n_a_e = nrow(dt[group=="Atorvastatin"&get(outcome)==1]),
    ir_a = round((nrow(dt[group=="Atorvastatin"&get(outcome)==1])/sum(dt[group=="Atorvastatin"]$event_tars_year))*1000,2)
  )

  dt_full <- rbind(main, TOTAL, meta, fill=T)

  return(dt_full)
}

(f_main1 <- final_table(main1, dt_meta, dt, "mace"))

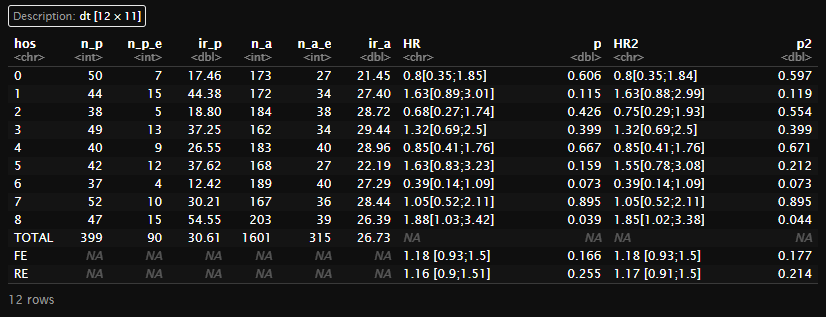

fig7. Final Table for Hazard Ratio by Meta analysis

---

5. Forestplot

- Make a forestplot image

# 1. set your path
path<-"C:/Users/USER/Desktop/forestplot.png"

# 2. function to make a forestplot
mk_fp <- function(dt, path) {
  library(forestplot)
  library(ggplot2)

  png(path,width=1750,height=600)

  # make a header table
  header <- data.table(
    hos = c("","Institution"),
    n_p = c("Pravastatin","Patient"),
    n_p_e = c("", "Event"),
    ir_p = c("","Incidence Rate"),
    n_a = c("Atorvastatin","Patient"),
    n_a_e = c("", "Event"),
    ir_a = c("","Incidence Rate"),
    HR = c("HR[95% CI]","Unadjusted"),
    HR2 = c("","Adjusted"),
    summary=T,
    mean = NA,
    lower = NA,
    upper = NA
  )

  # transform according to forestplot form
  base <- dt %>%
      mutate(
      mean = as.numeric(substr(HR2, start = 1, stop = regexpr("\\[", HR2) - 1)),
      lower = as.numeric(substr(HR2, start = regexpr("\\[", HR2) + 1, stop = regexpr(";", HR2) - 1)),
      upper = as.numeric(substr(HR2, start = regexpr(";", HR2) + 1, stop = regexpr("\\]", HR2) - 1)),
      n_p = as.character(n_p),
      n_p_e = as.character(n_p_e),
      ir_p = as.character(ir_p),
      n_a = as.character(n_a),
      n_a_e = as.character(n_a_e),
      ir_a = as.character(ir_a),
      HR = ifelse(grepl("^NA", HR), "-", HR),
      HR2 = ifelse(grepl("^NA", HR2), "-", HR2),
    ) %>%
    select(-p) %>%
    mutate(
      summary = ifelse(hos %in% c("FE","RE"), T, NA)
      ) %>%
    as_tibble()

  source <- bind_rows(header, base)

  plot<-source %>%
    forestplot(mean=mean, lower=lower, upper=upper,
               labeltext = c(hos, n_p, n_p_e, ir_p, n_a, n_a_e, ir_a, HR, HR2),
               is.summary = summary,
               clip = c(0.01, 5.5),
               fontsize = 50,
               txt_gp = fpTxtGp(label = gpar(cex = 1.2), ticks = gpar(cex = 1.2)),
               xticks = c(0,0.5,1,1.5,2,3),
               hrzl_lines = list("3" = gpar(lwd=1,lty = 1,columns=1:9)
                                 # , "17" = gpar(lwd = 1, columns = 1:9, col = "#000044")
                                 ),
               xlog = F,
               col = fpColors(box = "royalblue",
                              line = "darkblue",
                              summary = "royalblue",
                              hrz_lines = "#444444"),
               boxsize=0.2,
               zero=1,
               gap=unit(1,"mm"))


  # save as png file
  # png("forestplot.png",width=800,height=600)
  print(plot)
  dev.off()
  return(plot)
}

mk_fp(f_main1, path)

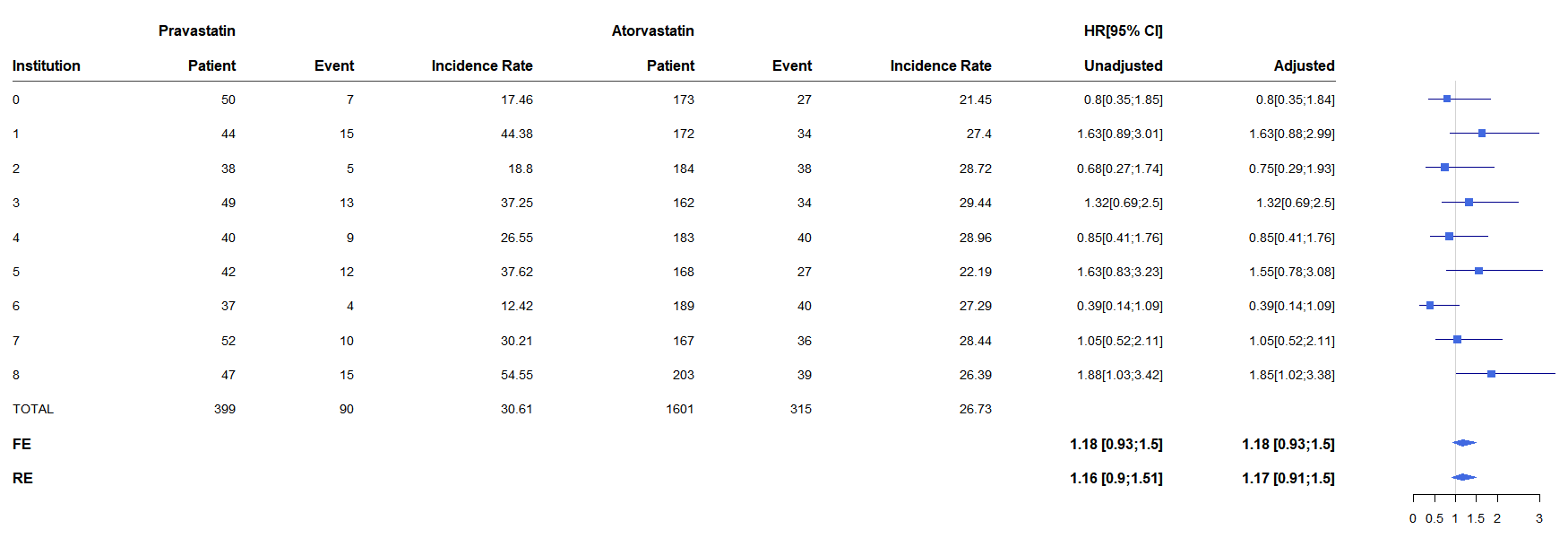

fig8. forestplot

---

6. Kaplan-Meier

- Basic

library(survival)
library(survminer)


# 1.  survfit model
fit <- survfit(Surv(event_tars_year, mace) ~ group, data = dt)

# 2. formula
km_total<-ggsurvplot(fit,data=dt,
           risk.table=T, pval=T,
           xlab="Year",
           palette="jco",
           # fun = "event", # event = cumulative event
           # legend.title="Group",
           # legend.labs=c("Atorvastatin","Pravastatin"),
           tables.height = 0.35)
print(km_total)
# 2. save
ggexport(filename = "C:/Users/USER/Desktop/dskr_results/km/1. mace1/total_kaplan_meier.png",
         plot = km_total, device="png")

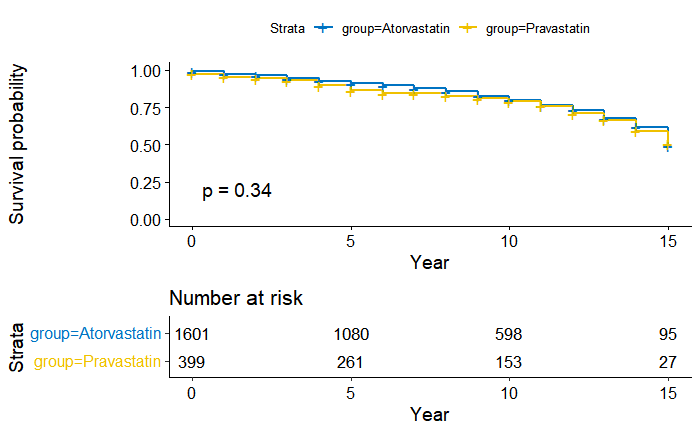

fig9. kaplan-meier

---

- Survival probability to Cumulative event

option fun = "event"

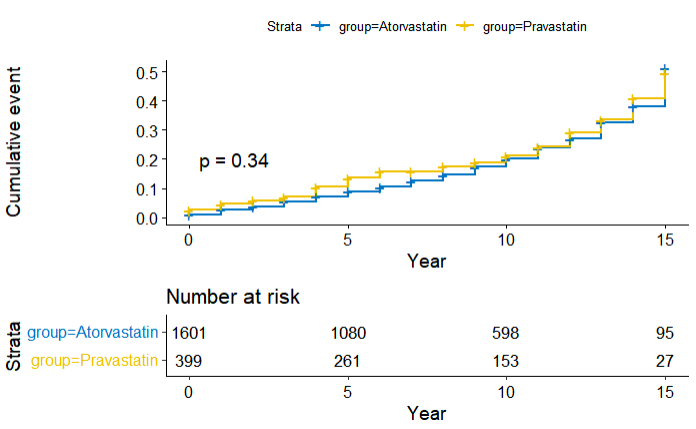

fig10. kaplan-meier cumulative version

---

- Advanced, group_by

library(survival)
library(survminer)

# 1.  survfit model
fit <- survfit(Surv(event_tars_year, mace) ~ group, data = dt)

# 2, group_by plot
gggb<-ggsurvplot_group_by(fit, data=dt, group.by = "from",
                    risk.table=T, pval=T,
                    xlab= "Year",
                    # fun = "event",
                    title="",
                    # legend.title="Group",
                    # legend.labs=c("Atorvastatin","Pravastatin"),
                    palette="jco",
                    tables.height=0.35)
print(gggb)
# print(gggb[[1]])


# 3. save as png file
hos_list <- unique(dt_meta$from)

for (i in 1:length(hos_list)){
  km_name <- paste0("C:/Users/USER/Desktop/dskr_results/km/1. mace1/kaplan_meier_",hos_list[i],".png")
  ggexport(filename=km_name, plot=gggb[[i]], device="png")
}

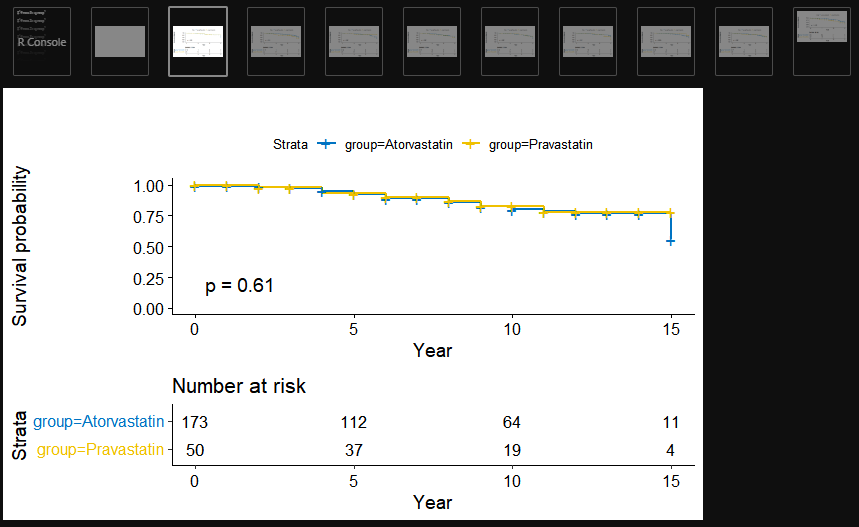

fig10. ggsurvplot_group_by, kaplan-meier
